Party Tent Highlight 3M
Range
Highlight Tents

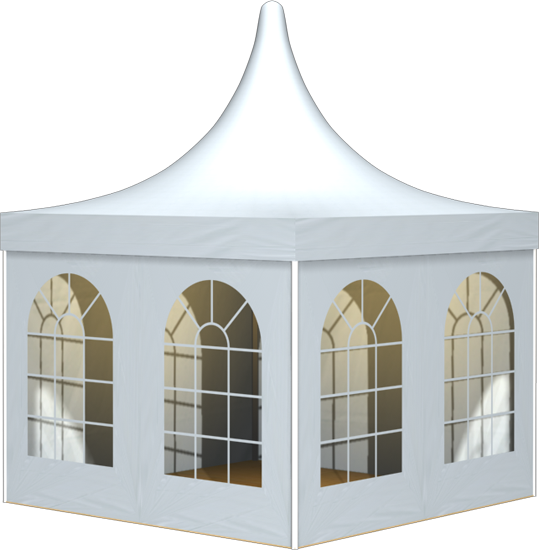

Tent image
Technical data
| Clear-span width | 300 cm |
| Side height | 229 cm |
| Ridge height | 299 cm |
| Highest point | 396 cm |
| Roof pitch |
20° |
| Longest component | 300 cm |
| Main profile | 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm ) |
| Eave / corner connection | Internal eave insert |
| Extension / lean-to options | By using rain gatters can be connected to further tents of the same design in any form and to any length (up to 72 m²) |
| Flooring options | Woodenfloor with timber and steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards |
| Cover | RÖDER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | By using woodenfloor with steel subconstruction and weights anchoring can be omitted |
| Note | With this type of tent a height balancing adjustment of the beams of ca. 10 cm is possible |

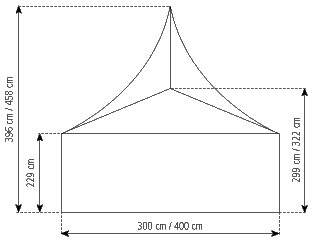

Tent top and side view image
